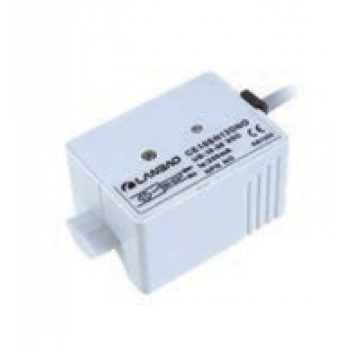

Cảm biến điện dung CE10SN13DNO Lanbao
Cảm biến điện dung CE10SN13DNO Lanbao
Click image for Gallery
Mã sản phẩm:
CE10SN13DNO
Tình trạng:
Còn hàng
Giá:
Còn hàng
Liên hệ
Trước Thuế: Liên hệ
Số lượng:
+
-
- Hoặc -
Thêm Yêu thích
Thêm so sánh
0
0 đánh giá
|
Viết đánh giá
Mô tả
Đánh giá (0)
Dimension drawing
Feature Description
Item Code
◆
Detect the liquid level in the pipeline
◆
Surge, reverse polarityprotection
◆
Housing material :PBT
◆ Protection degree :IP67(IEC)
NPN NO
CE10SN13DNO
NPN NC
CE10SN13DNC
NPN NO+NC
——
PNP NO
CE10SN13DPO
PNP NC
CE10SN13DPC
PNP NO+NC
——
Connection diagram
Specification
Mounting
NF
SN[mm]
13mm
Frequency
20Hz
Housing size
43*24*20
Pipeline
Nonmetal OD:¢8…11 thickness≤1mm
Output
NPN/PNP NO/NC
Power supply
10…30VDC
Temperatures drift
≤±10%
Hysteresis
3…20%
Repeat accuracy
≤3%
Load current
≤200mA
Residual voltage
≤2.5V
Consumption current
≤15mA
Protection circuit
Surge and reverse polarity
Indicator
Yellow LED
Ambient temp.
-10…55℃
Ambient RH
35-95%
Protection degree
IP67
Housing material
PBT
Connection
PVC Cable 2m
