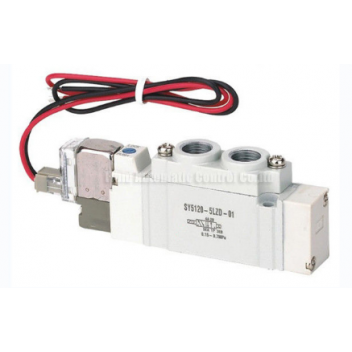

SY5120 G1/4 Two Position Five Way Solenoid Valve
Click image for Gallery
Mã sản phẩm: SY5120 G1/4 Two Position Five Way Solenoid Valve
Tình trạng: Còn hàng
Tình trạng: Còn hàng
Giá:
Liên hệ
Trước Thuế: Liên hệ
Trước Thuế: Liên hệ
SY5120 G1/4 Two Position Five Way Solenoid Valve SMC Equivalent
SMC type SY series Solenoid valve two position five way port size M5,G1/8,G1/4,G3/8 e.g SY5120-1/8-220VAC-L
SY3120, 3220, SY5120, 5220, SY7120, 7220 SMC 5/2 way pneumatic solenoid operated valve for air directional control with Aluminum Alloy body material
Quick Detail:
* SY series solenoid valve SMC interchangeable
* Two position Five way,Three Position Five Way
* L Type Socket,G Type Wire outleading,D type Din Connector
* Port size M5x0.8,G1/8,G1/4,G3/8
* Compact design small volume
*With Manifold block for group valve joint
*High working frequency up to 50cycle/Sec
*Fast respond,low consumption
Applications:
SY Series SMC Type solenoid valve act as control equipment for air directional control in Pneumatic automation systems.
Specifications:
|
ORDERING CODE |
||||
|
SY5 |
120 |
1/4 |
AC220V |
L |
|
Type |
Function type |
Port size |
Voltage |
Electricity Connect |
|
SY3:SY3000 Series SMC type Solenoid valve |
120:Two Position Five Way Single coil |
M5:M5x0.8 |
AC220V:220VAC |
L:Wire outleading |
|
SY5:SY5000 Series SMC type Solenoid Valve |
220:Two Position Five way Double coil |
1/8:G1/8" |
DC24V:24VDC |
|
|
SY7:SY7000 Series SMC type Solenoid Valve |
320:Two Position Five Way Double coil Center Close |
1/4:G1/4" |
AC110V:110VAC |
S:Socket Type |
|
SY9:S7000 Series SMC type Solenoid Valve |
420:Two Position Five Way Double coil Center Exhuasting |
3/8:G3/8" |
DC12V:12VDC |
|
|
520:Two Position Five Way Double coil Center Pressure |
||||
|
SPECIFICATION |
|
|
Model no |
SY Series |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|
Body Material |
Aluminum Alloy |
|
Position And Way Numbers |
Two Position-Five Way |
|
Motion Pattern |
Inner Pilot Operated |
|
Port Size(Main body) |
M5x0.8 G1/8 G1/4 G3/8 |
|
Pressure Endurance |
1.05MPa |
|
Working Pressure |
0.15~0.8MPa |
|
Operating Temperature |
5~60℃ |
|
Voltage Tolerance |
±10% |
|
Power Consumption |
AC:4.5VA DC:3.0W |
|
Protection Class&Insulation |
F Class IP65 |
|
Maximum Working Frequency |
50cycle/Sec |
|
Minimum Actuating time |
0.05Sec |
|
Lubrication |
Not Required |
SY3120
SY5120
